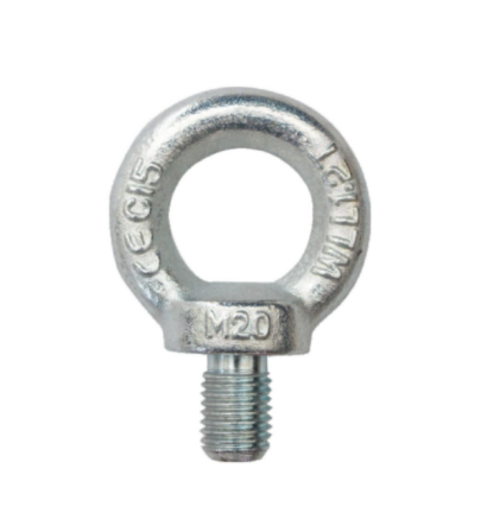

Eye bolt

Eye bolt Specification

Diameter
20 mm (M20)

Head Type
Forged Eye

Dimension (L*W*H)
Depends on selected model (typically specified by diameter and length)

Thread Type
Metric (M20)

Length
Varies as per model; thread length shown approx. 40 mm

Heat Treatment
Normalized

Surface Treatment
Zinc Plated / Galvanized

Thickness
Standard Duty

Standard
DIN 580

Grade
C15 (as stamped on the eye bolt)

Use
Lifting, rigging, anchoring

Application
Heavy Duty Industrial, Construction, Marine, Machinery, Structural Fixtures

Shape
Round Eye

Thread Pitch
2.5 mm (for M20)

Installation Method
Screwed in

Corrosion Resistance
Yes, due to surface treatment

Color
Metallic Silver

Load Capacity
Varies by size, up to 2.5 Ton for M20

Material
Carbon Steel

Eye bolt Trade Information

Minimum Order Quantity
50 Pieces

Delivery Time
4 Days

Eye bolt About

Heavy-Duty Forged Steel Eye Bolt / Lifting Eye Bolt

Product Overview

Our High-Quality Eye Bolts are precision-engineered for reliable lifting, anchoring, and secure rigging applications across various industrial environments. Manufactured from premium-grade forged steel, these eye bolts offer high tensile strength, exceptional durability, and superior load-bearing capacity to ensure maximum safety during heavy material handling.

Key Features & Specifications

Material: Heavy-duty Forged Carbon Steel / Stainless Steel (SS 304 / GI)
Finish: Hot-Dip Galvanized / Zinc Plated / Self-Color for high corrosion resistance
Thread Type: Metric / UNC Standard Precision Threading
Plain Eye Bolt (for vertical lifting)
Load Capacity: High Working Load Limit (WLL) tested for heavy-duty applications

Applications

Overhead lifting and material handling equipment
Machinery installation and anchoring
Marine, construction, and structural engineering projects
Rigging, wire rope, and chain attachment systems

Designed for Heavy Duty Performance

Built with carbon steel and manufactured to the DIN 580 standard, this eye bolt delivers superior strength and reliability for various demanding industrial tasks. The forged eye and normalized heat treatment offer added toughness, making it suitable for construction, marine, and structural fixture use.

Corrosion-Resistant and Long-Lasting

The zinc plated or galvanized surface protects the eye bolt from corrosion, extending its service life in harsh outdoor conditions or marine applications. This robust surface treatment ensures your equipment remains secure and problem-free during repeated or prolonged use.

FAQ's of Eye bolt:

Q: How do you install the M20 carbon steel eye bolt?

A: The M20 eye bolt is installed by screwing it into a suitably threaded hole that matches the 20 mm diameter and 2.5 mm pitch. Ensure the thread engagement is adequate to support the intended load and tighten securely using appropriate tools.

Q: What makes this eye bolt suitable for heavy-duty applications?

A: Its construction from carbon steel, forged eye design, and normalization heat treatment provide robust strength and durability. With a load capacity of up to 2.5 tons (M20 size), it's engineered for lifting, rigging, and anchoring in industrial, construction, and marine settings.

Q: When should I use a galvanized or zinc-plated eye bolt?

A: You should use a galvanized or zinc-plated eye bolt in environments where corrosion resistance is needed, such as outdoor, marine, or humidity-prone areas. The surface treatment helps prevent rust, extending the bolt's lifespan.

Q: Where is this eye bolt commonly utilized?

A: This type of eye bolt is commonly used in heavy-duty industrial machinery, construction sites, marine environments, and structural fixtures for lifting, securing, or anchoring loads safely and effectively.

Q: What is the process to ensure secure lifting using this eye bolt?

A: Before lifting, inspect the bolt and ensure it is fully screwed in and seated flush with the surface. Confirm the load does not exceed the rated 2.5-ton capacity (for M20) and always use properly rated lifting hardware to maintain safety.

Q: What are the main benefits of using a DIN 580 standard eye bolt?

A: Adhering to DIN 580 ensures that the eye bolt meets strict dimensional, load-bearing, and safety standards, giving you confidence in its reliability for critical lifting and securing tasks.
